Product Details
- Place of Origin: jiangsu
- Brand Name: JiangSu TengFa
- Model Number: WB

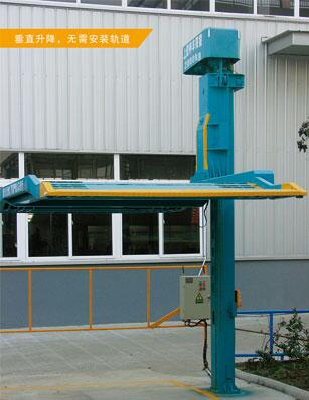

Product Name: Single lift parking equipment
Product Code: 145917-700
Model: WB
Updated: 2014.11.26
Manufacturer: single lift parking equipment - Taizhou Teng Construction Machinery Co., Ltd.
Views: 115
- Place of Origin: jiangsu
- Brand Name: JiangSu TengFa
- Model Number: WB
| /Installation dimensuons(L*W) | 5500mm×2600mm |
| /clearheight of the lift | /optimal:3800mm，/Min：3600mm |
| /dimensions of car on the upper platform(L*W*H) | 5000*1950*1700mm(Rearview mirror width not included) |
| Lifting capacity of upper platform | ≤2000 |
| dimensions of car on the ground (L*W*H) | 5500*1950*2000mm(Rearview mirror width not includ |
| dimensions of car on the ground (L*W*H) | 5500×1950×2000mm(Rearview mirror width not included PERFORMANCE PARAMETERS |
| /Power requirement | Three/phase AC380V/50Hz |
| /Range of power | /Three phase five-wire system 380V,50Hz, ±5% |
| /Motor | 2.2kw |
| 控制方式/Operation mode | Remote control/push-button/IC card/integrated management |
| /Time for parking/retrieving at a time | ≤60s |
| /Noise | ≤70dB(A) |
| /Power comsumption | ≤0.07kwh |
